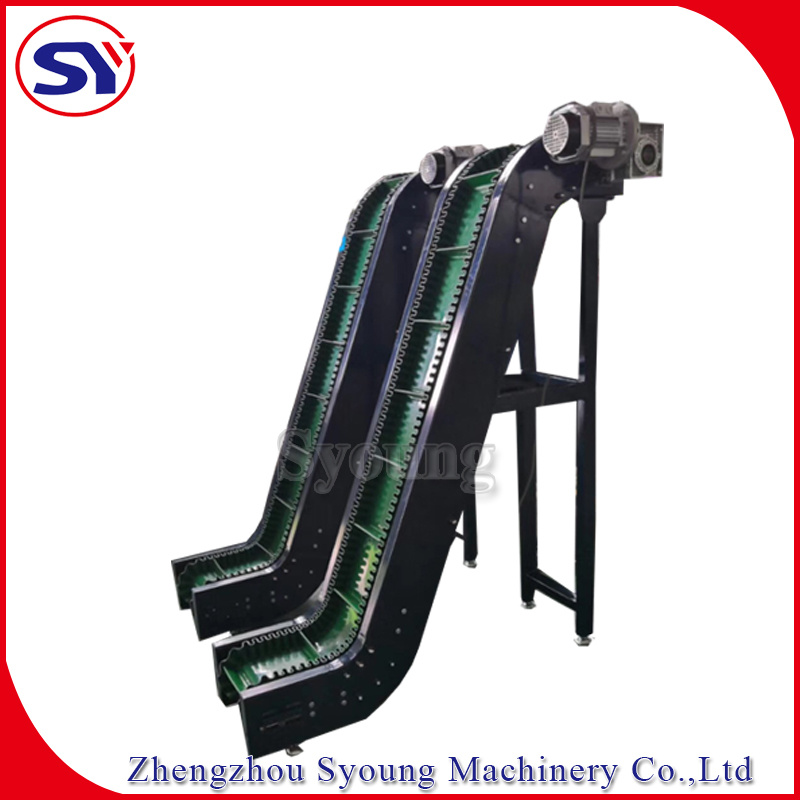

Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor

Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor ♦♦Company introductionWe Zhengzhou Syoung Machinery Co.,Ltd is specialized in manufacturin

Featured Products

Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor
Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor
Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor

♦♦Company introduction
We Zhengzhou Syoung Machinery Co.,Ltd is specialized in manufacturing and exporting conveyor equipment for many years.
We have professional technical engineer team, which have more than 20 years experience in conveyor solutions for different fields.
We are engaged in customizing different size conveyor as clients' specifications and requirements, which received good feedback from our clients.


♦♦Main functions of rubber sidewall belt conveyor
1.Corrugated belt conveyor convey all kinds of material whose density is 0.5-2.5 t/m3 in the temperature-19 °C ~ + 40 °C.
2.The inclined angle is between 0 and 90°.


Application range of rubber sidewall belt conveyor
1.Convey powder, granule: wheat powder, coconut powder, plastic granule and so on.
2.Convey finished product: potato chips, snacks food, puffed food and so on.
3.Convey box, tray, pellet, parcel etc.
4.Sorting and inspecting fruit like date, apple etc.
5.Also can use in electric, toy, daily chemical, pharmaceutical, posts and telecommunications and any others industry fields.

Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor
Main Structures of rubber sidewall belt conveyor
1.Corrugated side belt   2.Driving device  3.Transmission drum  4.Turnabout drum  5.Pinch roller 6.Carrier roller  7.Carrier belt roller   8.Vertical roll    9.Clear material device     10.Tension device
11.Frame,head hopper,head shield,guide chute,intermediate frame,supports.
Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor

Parameters of rubber sidewall belt conveyor
Belt Width400mm, 500mm, 600mm, 650mm, 800mm, 1000mm, 1200mm, 1500mm.
Conveyor LengthCustomized.
Conveyor HeightCustomized
Conveyor Beltfood grade PVC/PP/Rubber/PU as your demand
FrameSUS304 or carbon steel as your demand
Driving DeviceElectric motor or electric drum
Belt SpeedFixed speed or adjustable speed (frequency converter)
Inclined angle30°/45°/60°/90°
Sidewall height40-240MM
Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor
♦♦Main features of rubber sidewall belt conveyor
1. Save occupied area, save investment.
2. Large transportation capacity, strong commonality.
3. Conveyor's inclined Angle: 0 °-90 °
4. Easy maintenance.


More details of rubber sidewall belt conveyor
Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor
Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor
Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor

Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor
Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor

Packing&Shipping:
--Generally packed in Plywood case.
--Shipment within 10~20 working days after the advance/full payment.
--We provide timely delivery. More importantly, if you don't know how to install machines, our professional technical staff will assist you.

Stainless Steel 304 Frame Rubber Sidewall Conveyor Belt Apron Conveyor
Our Service:
1, One year guarantee from exporting date.
2, If any easily damaged parts are found defective in quality for the first year, we will replace it
for free.
3,We provide timely delivery. More importantly, if you dont know how to install machines, our professional technical staff will assist you.


PS: If you are interested in our climbing belt conveyor, please show me the width and length,height you need, we also customize as your special requirements, such as adjustable speed, adjustable height etc.
