Conveyor Rollers, Bearing Rollers, Impact Rollers, Grooved Rollers, Conveyor Idler Rollers

1.Pictures Of Roller Conveyor  MannufacturerConveyor rollers Description:1. As the typical product in the gravity rolller series, it  is widely applied,  especially in the carton conveyring area. e.g airport luggage handling and logistics distribution center.2. Precesion ball bearing

Featured Products

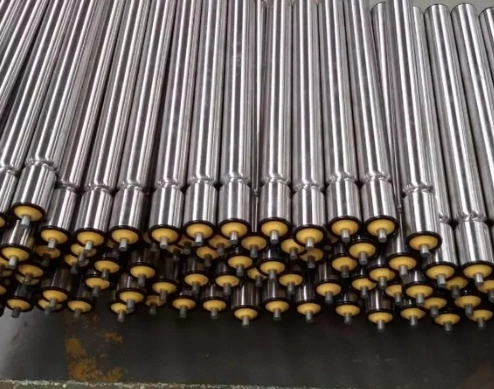

1.Pictures Of Roller Conveyor  Mannufacturer


Conveyor Roller, Carrying Roller, Impact Roller, Trough Roller, Conveyor Idler

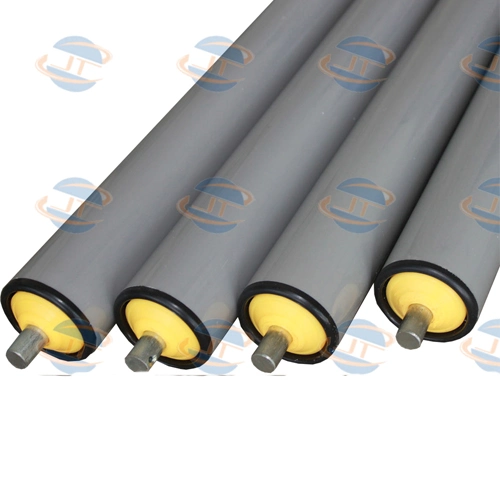

Conveyor rollers
 Description:
1. As the typical product in the gravity rolller series, it  is widely applied,  especially in the carton conveyring area. e.g airport luggage handling and logistics distribution center.

2. Precesion ball bearing polymer bearing housing , end cap form the bearing unit which is very important . It is not only for good looding but also further more the smooth and quiet running.

3. The end cap of roller resist dust and water splash well in operation environment.

4. The design of pwlymer bearing housing makes it able to operate in some special environment.

5. The lubrication method of bearing could be oil lubricating or grease lubricating as requirement

6. Suitable  for the high speed conveying. Speed could vary according to diameter and length of roller,  Max.speed up to 120m/min.

7. Semi-precision bearing for option, smooth running, be used for gravity roller conveyor in low speed(<30m/min)

8. Temperatue range: 0 to +40ºC


Specifications:
1.Power:gravity
2.Tube material:stainless steel (or galvanized stee, chrome-plated,steel with rubber)
3.Tube Dia: Φ 38/ Φ 50/Φ 60/ Φ 76mm
4.Shaft material:galvanized steel (or stainless steel)
5.Shaft Dia:Φ12/ Φ15/ Φ20mm... ( non-standard according to customer's requirement)
6.Roller lenth :200-3000mm (according to customer's requirement)
7.Condition:new
8.Certification:ISO 9001
9.Load capacity : according to your requirment.


Packaging & Delivery:
Packaging Detail: wooden box or carton packing
Delivery Detail: According to your quantity


Our Services:
1. OEM Service
2. Special conveyor or other related machines' customer-made
3. Design for buyer



2.Applications of Product
Conveyor Roller, Carrying Roller, Impact Roller, Trough Roller, Conveyor Idler

3.Production Line of Product
Conveyor Roller, Carrying Roller, Impact Roller, Trough Roller, Conveyor Idler



4.More Product for Choose

Conveyor Roller, Carrying Roller, Impact Roller, Trough Roller, Conveyor Idler

5.Introduction of Company
Conveyor Roller, Carrying Roller, Impact Roller, Trough Roller, Conveyor Idler





Huzhou Jiutong Logistics Machinery Co.,LTD. was established in 2007.Our company is specialized in producing roller, conveyor, and many other components. Both OEM and design can be satisfied. Also we can supply installation service according to customer's requirement. JIUTONG started on registered capital USD82000, now our total capital reaches USD5,000,000, and annual sales can be USD6,600,000. The employees increased from tens to hundreds. One-third of employees were university graduated. There are about 30 sets of advanced processing equipments recently, and holds 8 patents. The research budget accounts for 6% of all our sales. We are committed to logistics equipments research, improving our market competition and achieving sustained economic development.

6.Welcome to Contact Us

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
