Product Description

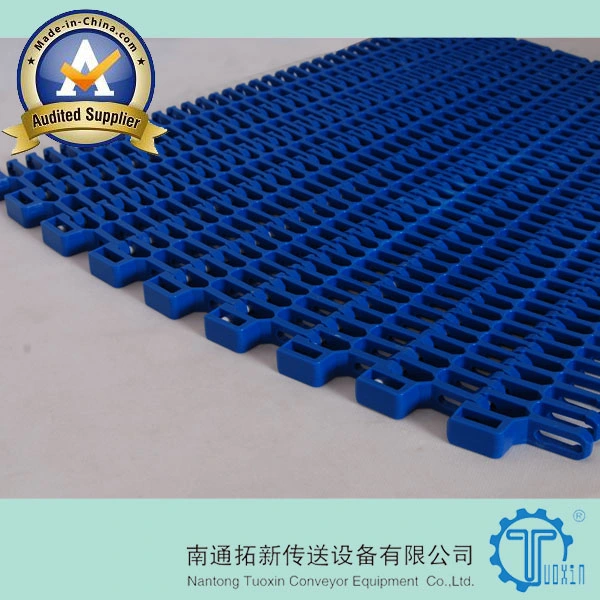

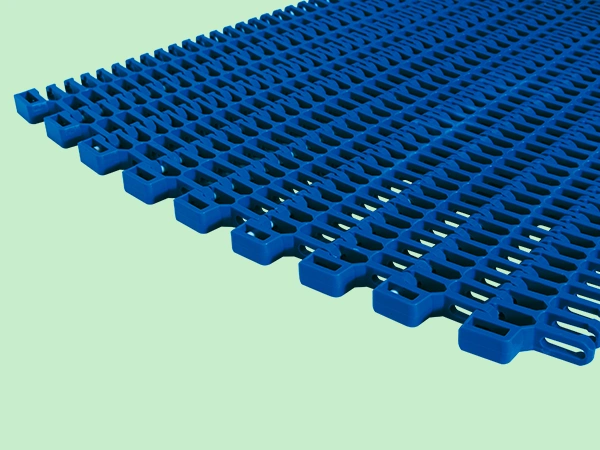

T508 Spiralox Flush Grid Plastic Radius Pitch Belting For Spiral Conveyor
- Belt pitch: 50.8mm
- Open area:51%
- Assembling method:connected with rods
T508 could be used in spiral conveyor,
Helical path for conveying bulk material vertically;
Large contact surface on a small floor space permits the conveying action to be combined with process functions such as cooling,heating,drying and moistening.
Advantages:
- High conveying capacities
- High sanitary standard
- High saitary standard
- Continuous operation-negligible maintenance
- Effcient operation
| Belt type | Material | Temperature range | Working load(max) | Weight | Backflex radius(min) | ||
| dry | wet | N/m(straight) | N(curved) | Kg/m2 | mm | ||
| T508 | POM | -40 to +80 | -40 to +65 | 29000 | 1600 | 8.5 | 50 |
Please contact us if any further questions.
