Stainless Steel Screw Conveyor / Screw Conveyor Powder Conveyor

Stainless Steel Screw Conveyor / Screw Conveyor Machine Powder Conveying Screw conveyor description ♦ Screw conveyor are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors are slanted at differe

Featured Products

Stainless Steel Screw Conveyor / Screw Conveyor Machine Powder Conveying



Screw conveyor description


♦ Screw conveyor are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors are slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on the steepness of the angle.
♦ Screw conveyor, also called spiral conveyer,auger conveyor,screw feeder,vibrating conveyor,flexible screw conveyor ,etc.
♦ Screw conveyor is designed to transport series materials from one place to another.. Combined with the vibrating screen of our company, it can do material situation tracing, also can be used separately.
♦ This kind screw conveyor can be used to transport series materials of powder, granular or small block in industry, food and environment protection industries, medicine etc.

Stainless Steel Screw Conveyor / Screw Conveyor Machine Powder Conveying


Screw conveyor application


Food Processing               Pharmaceutical

Powder and energy           Petrochemical

Chemicals                         Mining and minerals

Feed processing               Plastic

Stainless Steel Screw Conveyor / Screw Conveyor Machine Powder Conveying



Screw conveyor technical parameter

Screw conveyor

100

160

200

250

315

400

Screw diameter(mm)

100

160

200

250

315

400

Screw pitch(mm)

100

160

200

250

315

355

Rotating speed(r/min)

100

120

90

90

75

75

Production capacity   Qφ=0.33(m3/h)

2.2

7.6

11

22

36.4

66.1

Power Pd 1=10m(kw)

1.1

1.5

2.2

2.4

3.2

5.1



Specification only for your reference, size variable as per customer's request.



Screw conveyor features


1.The machine is especially suitable for conveying all kinds of powdery material,also can be used for conveying all kinds of granular or flake materials.
2.Using unique designed stainless steel screw-shaped blade;
3.High conveying capacity,safe and reliable operation,easy to disassemble and clean;
4.Good adaptability and long service life;
5.Good sealing quality and rigidity;
6.It can be customized as custormer requests;
7.It can add vibrator for speed up the feeding speed.

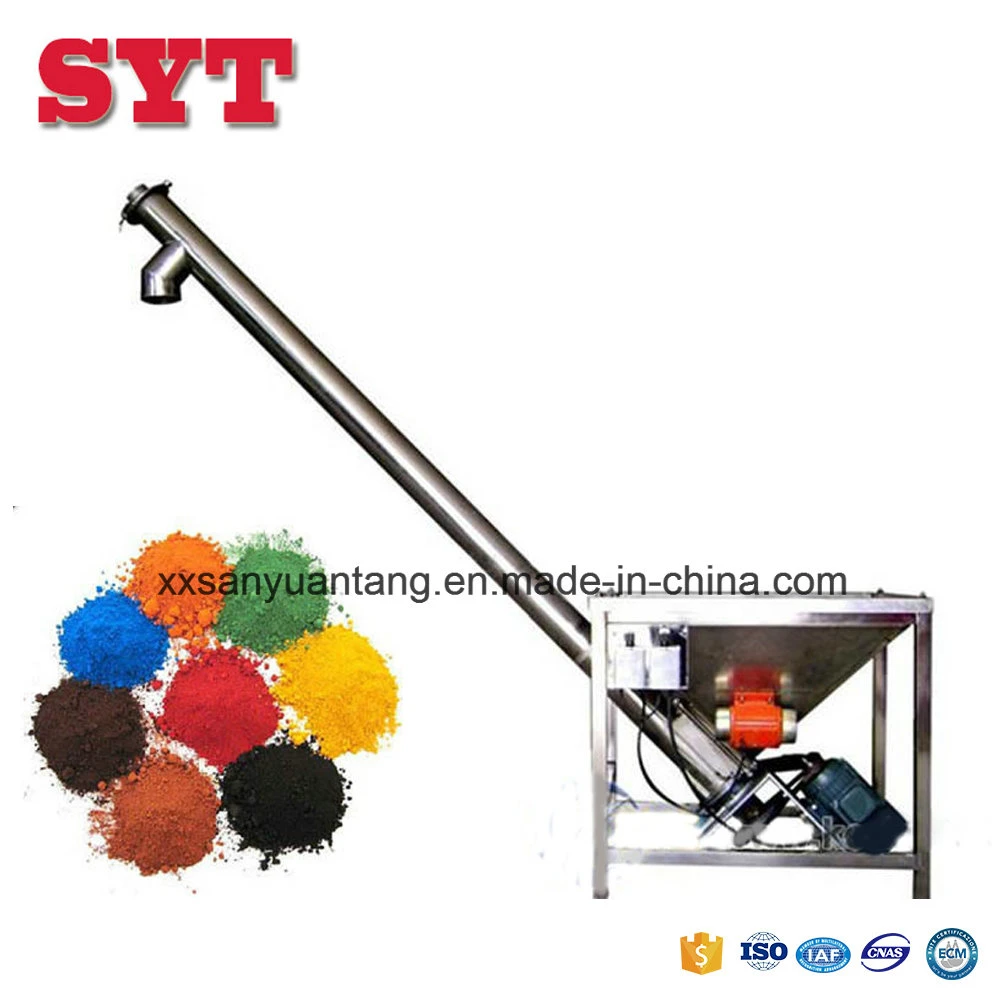

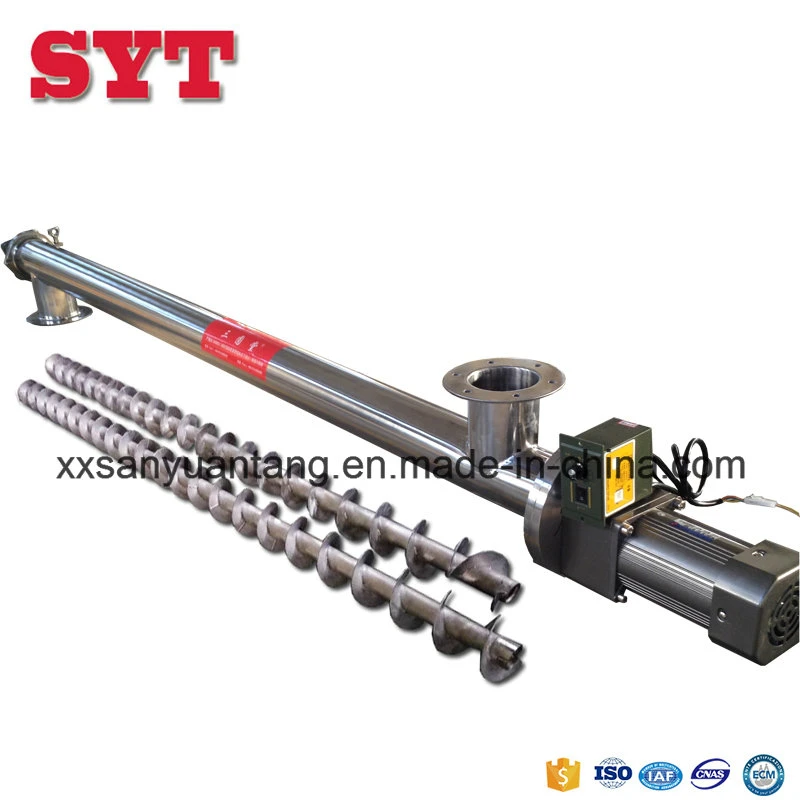

Screw conveyor product pictures


Stainless Steel Screw Conveyor / Screw Conveyor Machine Powder Conveying


Screw conveyors work with many machines

Stainless Steel Screw Conveyor / Screw Conveyor Machine Powder Conveying


Buying Guides


Tell me the following questions,Then I can send you accurate quotation soon.

Material name:_____     Material bulk density: _____t/m3   Water content:____%

Production capacity: _____t/h;

Upstream equipment:_____;

Installation form is horizontal or inclined :________;
If it is inclined.Vertical conveying height:_____  Horizontal conveying distance:_____;

Whether add hopper: ____ (Ps. Yes or No);

If add hopper.The volume of the hopper is          m³;
Material is corrosive or not: ____ (Ps. Yes or No);

Working power supply: _____V ______HZ___Phase.


Note:
We customize conveyors in various specification, so our product introduction and display on alibaba is not final, just for your reference. If you need to order, please send me your specification request or drawing, we shall quote you at the earliest time.
