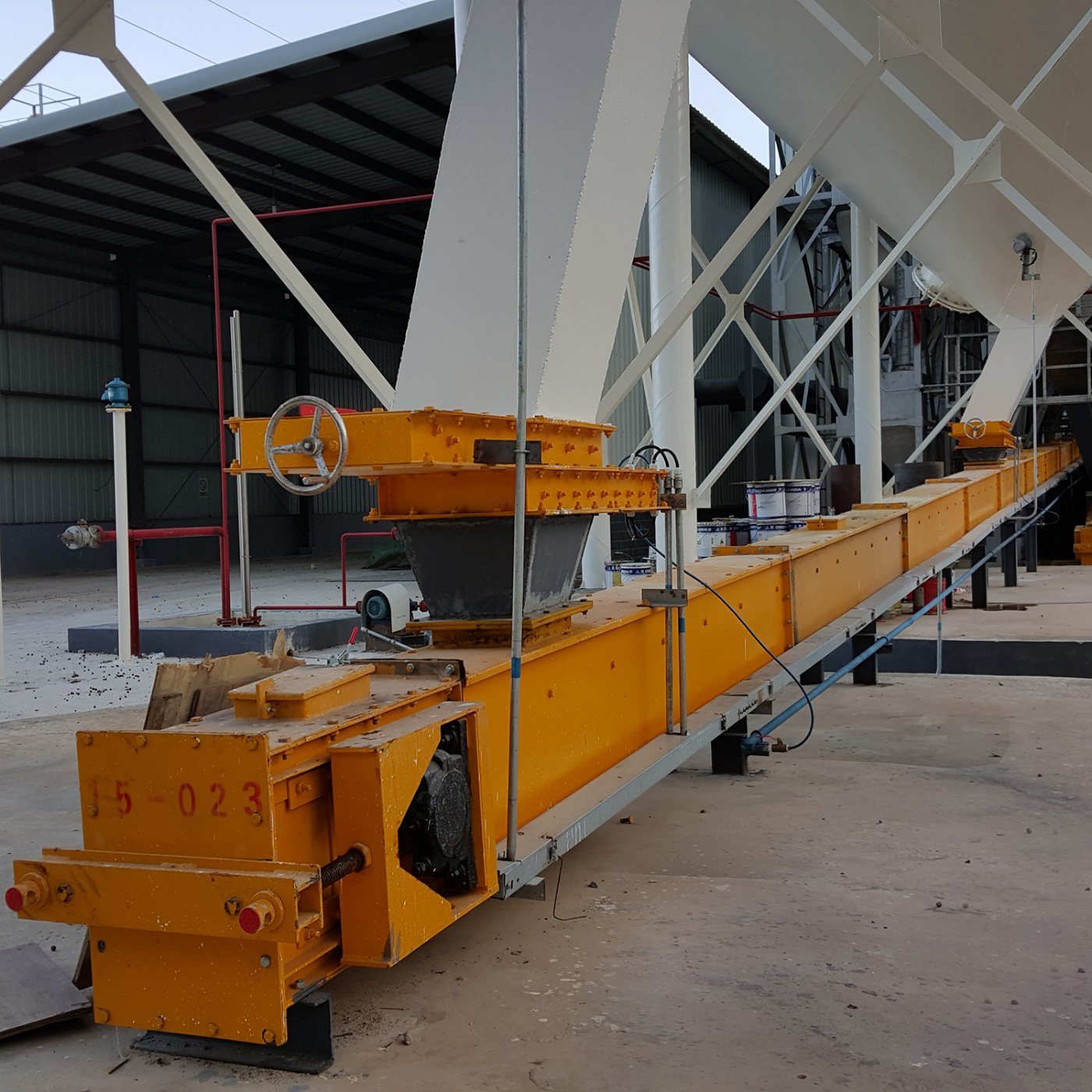

The Drag Chain conveyor is that transmission drives the drive sprocket to rotate, conveyor chain with the scraper meshes with drive sprocket and moves accordingly; when the material is added from feed inlet, it is received in slot, then pulling force of conveyor chain moves in the same direction, so that the internal friction and internal pressure between raw materials increases. When the friction is greater than friction between the material and the groove wall, it is driven forward by the conveyor chain movement, and increased internal pressure ensures a stable state between the layers, creating a continuous flow. When the ratio of the layer height meets certain conditions, transmission flow is stable and the material speed is about equal to chain speed, so material is continuously and stably transported from discharge port
| 1. Unique designed scraper conveyor for power station; |
| 2. Used forged chains,control speed by frequency conversion,conveying capacity can be changed. |
| 3. Chain breaking, blocking, overload automatic protection and alarm; |
| 4. there is local control cabinet which has remote interface to connect sign into host control room. |
| model | RMSD40 | RMSD50 | RMSD63 | RMSD80 |
| solt(MM ) | 400 | 500 | 630 | 800 |
| loading depth(MM ) | 250 | 250 | 400 | 400 |
| max loading depth(MM ) | 100-250 | 100-250 | 100-350 | 100-350 |
| chains | model | 3006T pitch 200MM |
| allowable load(KN) | 60 | 60 | 90 | 90 |
| weight(KG/M ) | 33.5 | 37.7 | 42.5 | 50 |
| speed(M/S) | 0.08-0.16 |
| capacity(T/H ) | 8~40 | 10-50 | 16-100 | 20-150 |
| max conveying distance(M ) | 20 | 15 |
