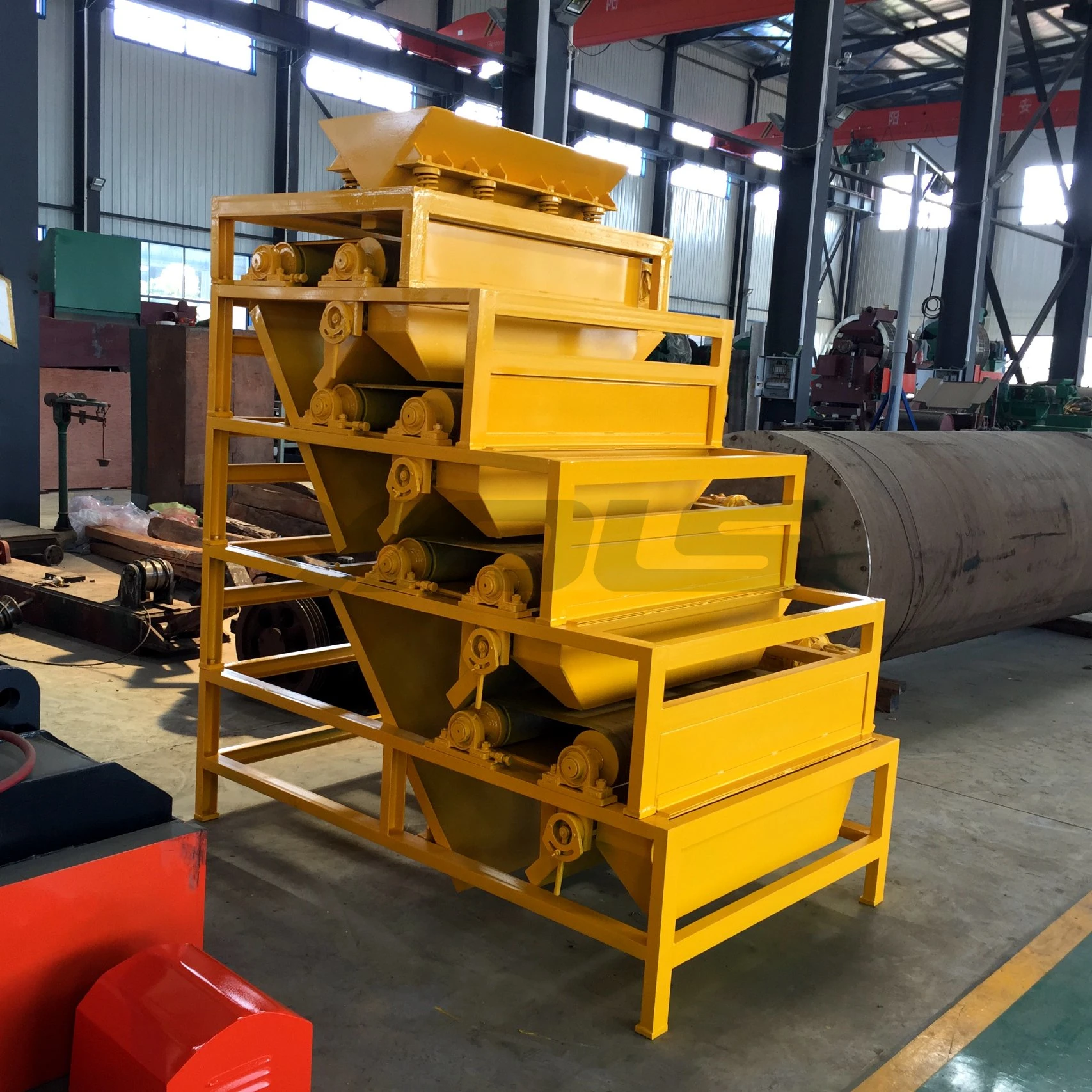

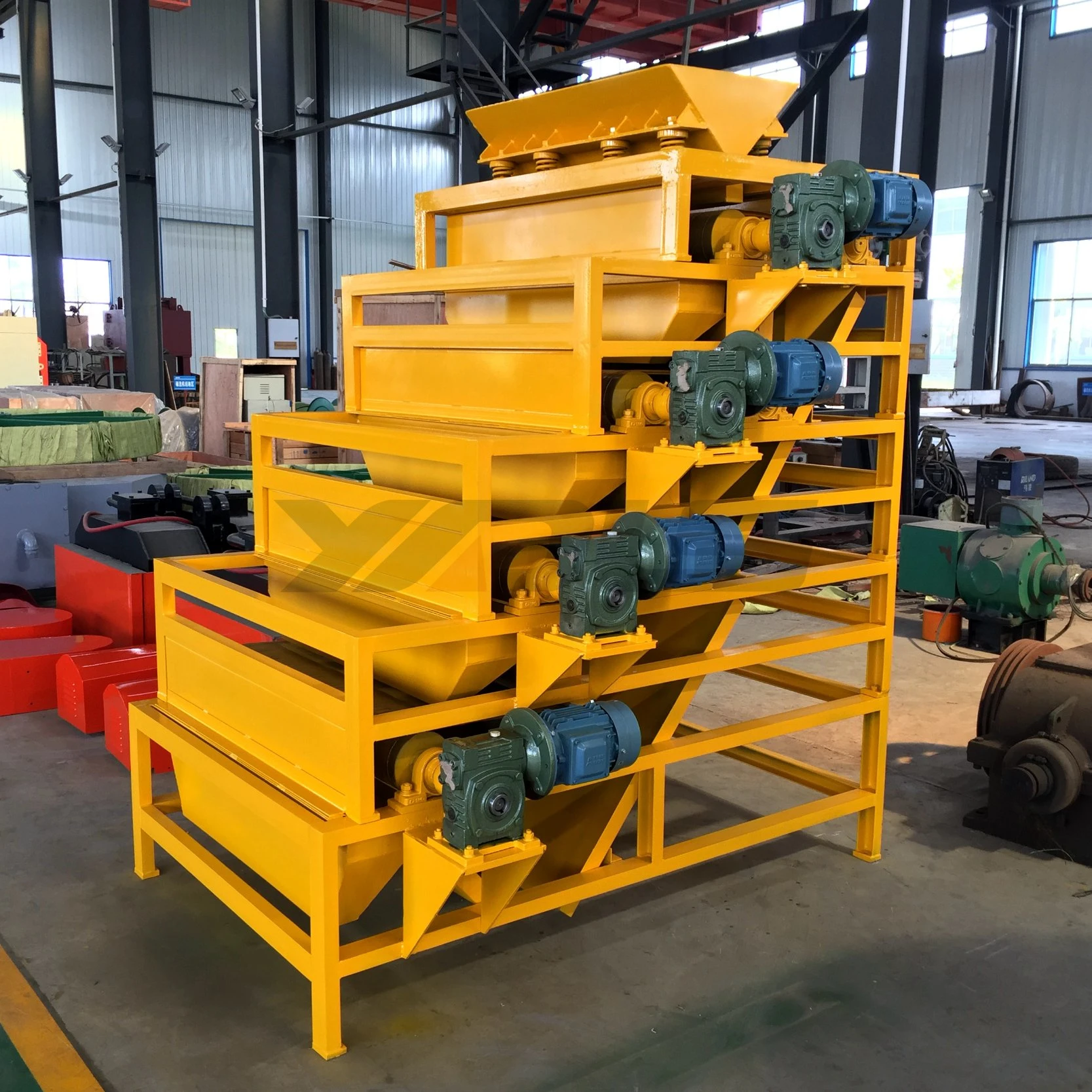

Series CR Magnetic Separator is dry type roller magnetic separator. The rollers are made of high energy permanent magnetic materials rare earth NdFeB, which is special designed by YYDLS (Yueyang Dalishen), for better beneficiation of Fe minerals such as hematite, magnetite, and non metallic minerals purification, such as feldspar, kaolin, clay, etc.
Application (magnetic separation, magnetic concentration, magnetic beneficiation, magnetic selecting, magnetic processing):
1. Discarding tailings and purifying of weak magnetic coarse minerals, such as hematite, ilmenite, and manganese, etc.
2. Processing non-metallic minerals, such as andalusite, sillimanite, rutile, kyanite, garnet, quartz, frigidite, feldspar, zircon, adamantite and diamond, etc.
3. Removing ferrous impurities from abrasives catalysis and other powders.
Feature and Benefits
1. Made of new type of high magnetic rare earth (above 45 MGOe)with high intensity(1.3T~1.5T);
2. High gradient (104) and high magnetization;
3. Maximum particle size is 50mm;
4. Simple and useful mechanical structure;
5. Various vibratory feeder;
6. Separation belt to protect the roll;
7. Up to four rollers for better concentration and higher recovery.
Note: Customized magnetic separators and free sample beneficiation test are available.
Our company
Exhibition photos
Factory photos
Hot Products
Application (magnetic separation, magnetic concentration, magnetic beneficiation, magnetic selecting, magnetic processing):
1. Discarding tailings and purifying of weak magnetic coarse minerals, such as hematite, ilmenite, and manganese, etc.
2. Processing non-metallic minerals, such as andalusite, sillimanite, rutile, kyanite, garnet, quartz, frigidite, feldspar, zircon, adamantite and diamond, etc.
3. Removing ferrous impurities from abrasives catalysis and other powders.
Feature and Benefits
1. Made of new type of high magnetic rare earth (above 45 MGOe)with high intensity(1.3T~1.5T);
2. High gradient (104) and high magnetization;
3. Maximum particle size is 50mm;
4. Simple and useful mechanical structure;
5. Various vibratory feeder;
6. Separation belt to protect the roll;
7. Up to four rollers for better concentration and higher recovery.
Note: Customized magnetic separators and free sample beneficiation test are available.
Technical Date of Magnetic Separator CR | |||||
Model | CR150x500 | CR150x1000 | CR250x500 | CR250x1000 | CR250x1500 |
Magnetic Field Intensity (Gs) | 12000~15000 | 12000~15000 | 12000~15000 | 12000~15000 | 12000~15000 |
Motor Power (kw) | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
Diameter of Roller (mm) | 150 | 150 | 250 | 250 | 250 |
Length of Roller (mm) | 500 | 1000 | 500 | 1000 | 1500 |
Feed Power (kw) | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 |
Feed Partical Size (mm) | 0.5~5 | 0.5~5 | 0.5~5 | 0.5~5 | 0.5~5 |
Feed Capacity (t/h) | 1.5~3 | 4~5 | 2~4 | 5~6 | 6.5~7.5 |
Weight (kg) | 700 | 800 | 900 | 1200 | 1400 |
