Modular Belt Conveyor Straight Conveyor Modular Conveyor

Specification for Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt  Conveyor Length1-25m, depending on your project designConveyor Width0.3-3m, for smaller width, we recommend use chain conveyorConveyor HeightAdjustable. Wheels and brake are availableFrame materialStainless steel/ Carbon steel

Featured Products


Specification for Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt


Conveyor Length1-25m, depending on your project design
Conveyor Width0.3-3m, for smaller width, we recommend use chain conveyor
Conveyor HeightAdjustable. Wheels and brake are available
Frame materialStainless steel/ Carbon steel with coating/ Aluminum
Belt materialPOM/PP plastic modular belt
Other belts PVC/PU/Mesh belt/ Plastic chain/Stainless chain all available depending on the products that transfer
MotorItaly brand/SEW/China brand
Voltage380V(415V)/50HZ(60HZ)
Certificate of equipmentSGS/FDA
Certificate of originalFORM E/F/P/A/L/M
Price termsFOB/CIF
Business typeManufacturer

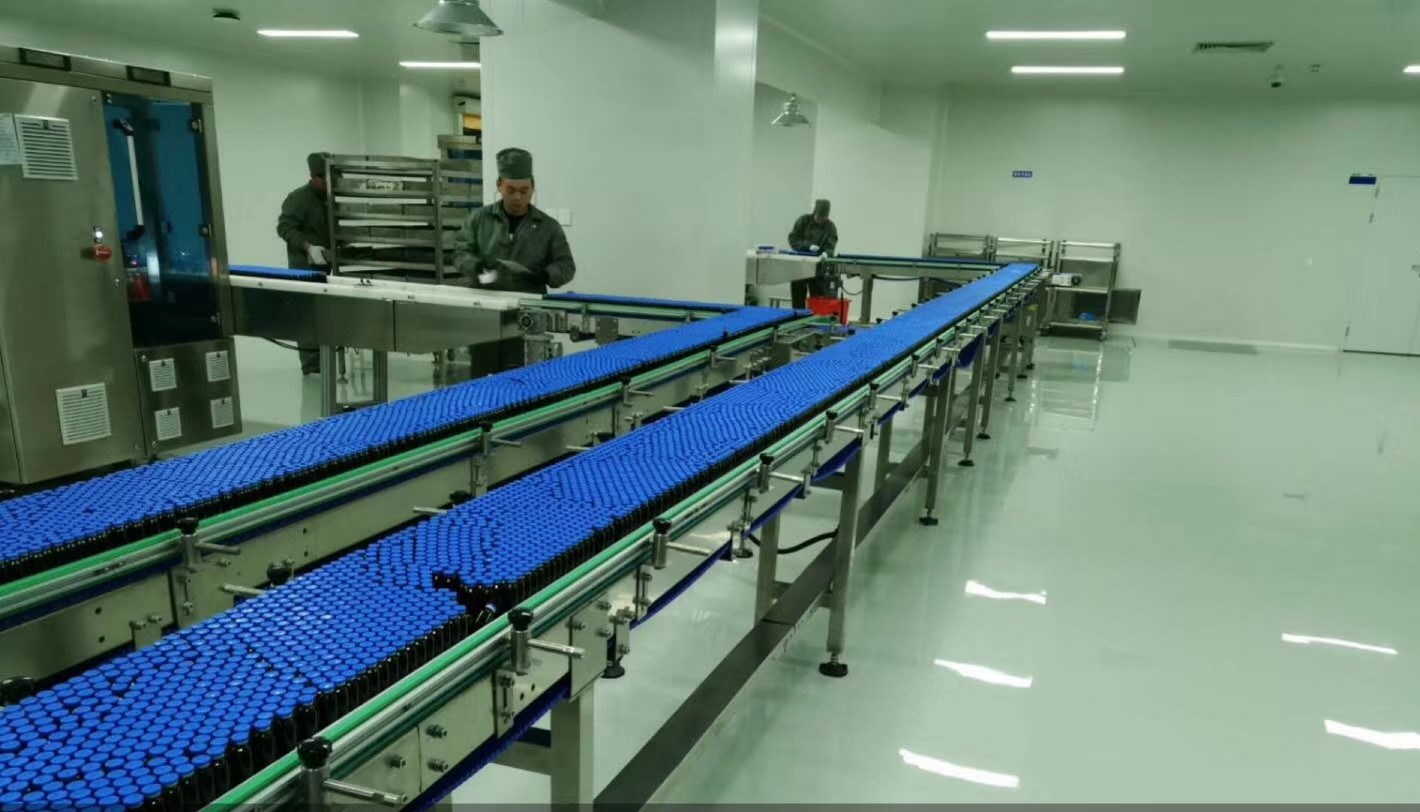

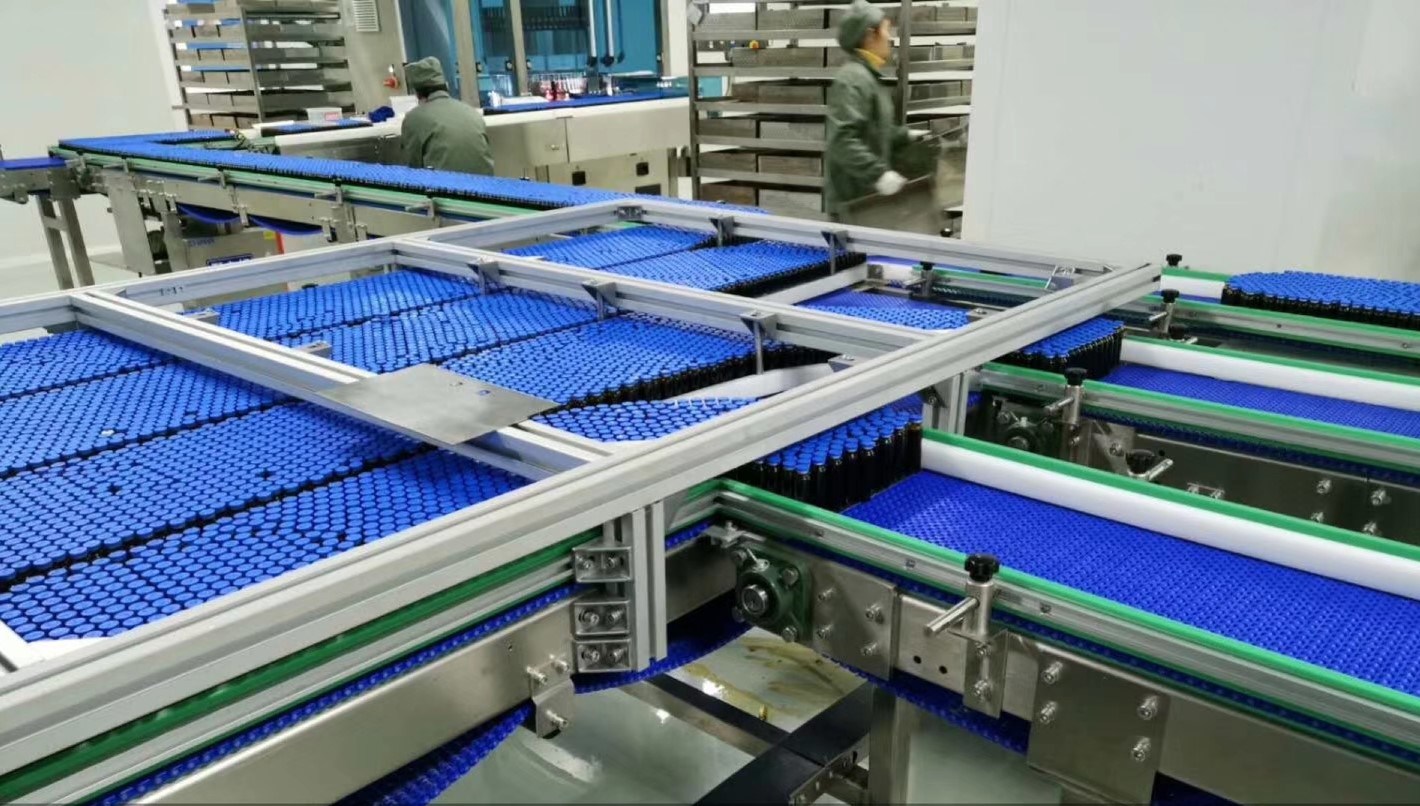

Related pictures of the conveyor system

Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt
Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt
Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt


Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt




Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt







Modular belt conveyor configuration list:

BeltFlat top or Flush grid modular belt, POM material.
Frame structureWaterproof SS 304 material frame with SS304 bearing( choose this kind frame and bearing when the goods that transfer with water). Stainless steel frame widely uses in food and beverage industry products transfer.

Frame bending without any slot at the backside. It can improve the lifetime of the conveyor.


Filler strip with stainless steel under the belt to protect the modular belt runs smoothly.  And support the belt running under high load capacity with high speed. It also can reduce the friction coefficient between the modular belt and conveyor frame.
Support legUse bow shape to make the conveyor more stable. Also can choose tripod stand
Power systemHigh-quality motor with electrical control cabinet
Automatic control
system
Can achieve functions such as lane separation, sorting, screening, classification, etc. according to your need
Conveyor designWe can fabricate according to your drawing. Also, we have a big design team that can make design for your according to your factory layout. We especially good at whole plant transportation design
Delivery time15 workdays




Shanghai HJ Factory and Office overview


Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt
Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt


Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt
Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt



Related products produced by Shanghai HJ Foodnbev Machinery Co.,ltd


Conveyor systemAll kinds of the automatic conveyor system
Modular beltAll kinds of modular belt, FT/FG/RIB/ROLLER TOP series
Plastic chainPlastic top chain, Flexible chain, Stainless steel chain
Industry beltPVC/PU belt, TPU belt, timing belt
Conveyor rollerStainless steel roller, PVC roller
Other conveyor spare partsGuard rails, Wear strips, Foot basis, Bearing, Connection parts

Modular Belt Conveyor Straight Running Conveyor Modular Conveyor Belt
