Product Application of Material Handling Conveying System Screw Conveyor for sale

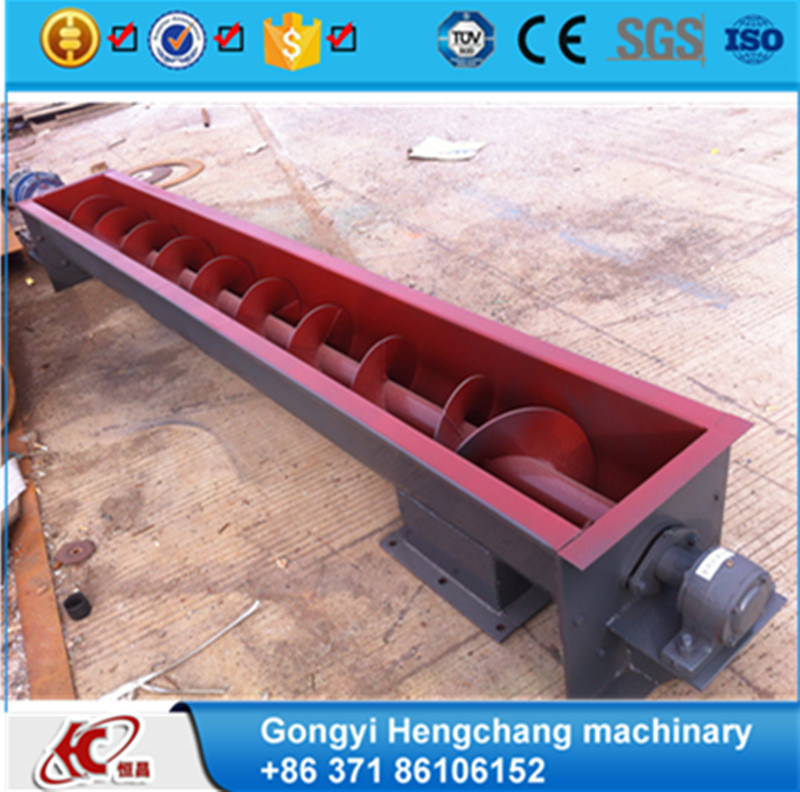

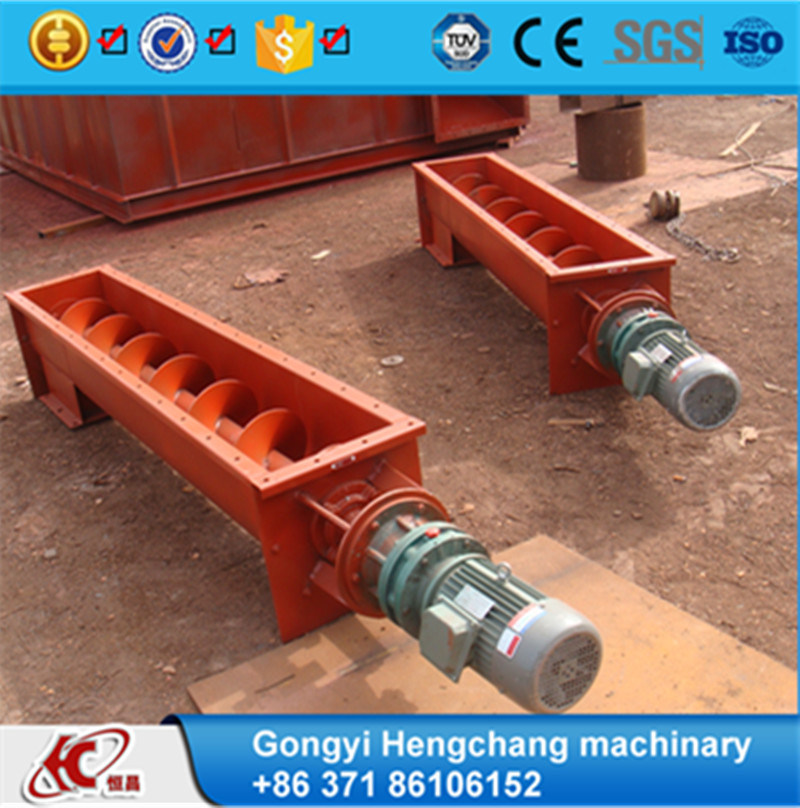

Screw conveyor is mainly used in all kinds of powder, granule and loose materials such as small block the level of vertical conveyor and ascension. Screw conveyor is made of steel, screw conveyor is used to transport high temperature of the powder or solid particles chemical industry, building materials with the product. The internal of screw conveyor is a pipe, the spiral in pipe welding.
Working principle of Material Handling Conveying System Screw Conveyor for sale
The material feed into the casing and screw flight was hold back by the frication resistance acted on the wall of casing during running, the screw flight push the material and make the material do axial movement, simultaneity the clockwise and counterclockwise fight act as mixer. The material can be discharged at the proper outlet at the bottom of casing or transport out at the end of chute. Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.
Technical Data of Material Handling Conveying System Screw Conveyor for sale
| Model | Screw dia.(mm) | Pitch (mm) | Length (m) | Speed (r/min) | Capacity (t/h) | Power (kw) |
| GX15 | 150 | 120 | 3-70 | 75 | 4.5 | 1.1-5.5 |
| GX20 | 200 | 160 | 4-70 | 75 | 8.5 | 1.5-7.5 |
| GX25 | 250 | 200 | 4-70 | 60 | 16.5 | 2.2-11 |
| GX30 | 300 | 240 | 4-70 | 60 | 23.5 | 3-15 |
| GX40 | 400 | 320 | 5-70 | 60 | 54.2 | 4-18.5 |
| GX50 | 500 | 400 | 5-70 | 48 | 80.6 | 5.5-30 |
| GX60 | 600 | 480 | 5-70 | 48 | 141.2 | 7.5-37 |
Machine parts
packing&delivery
Our srrvice
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
our copmany
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments.
