Product Description

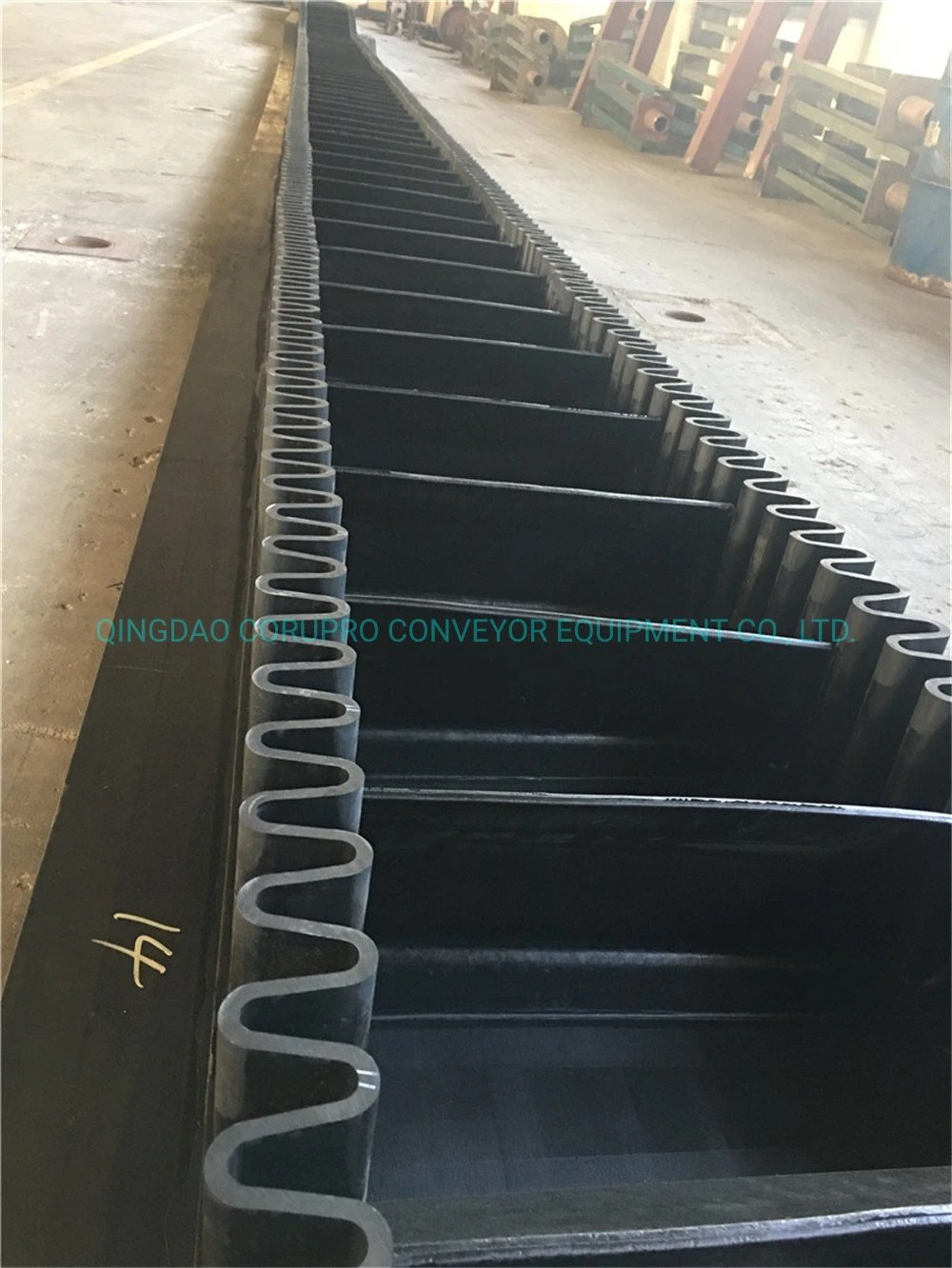

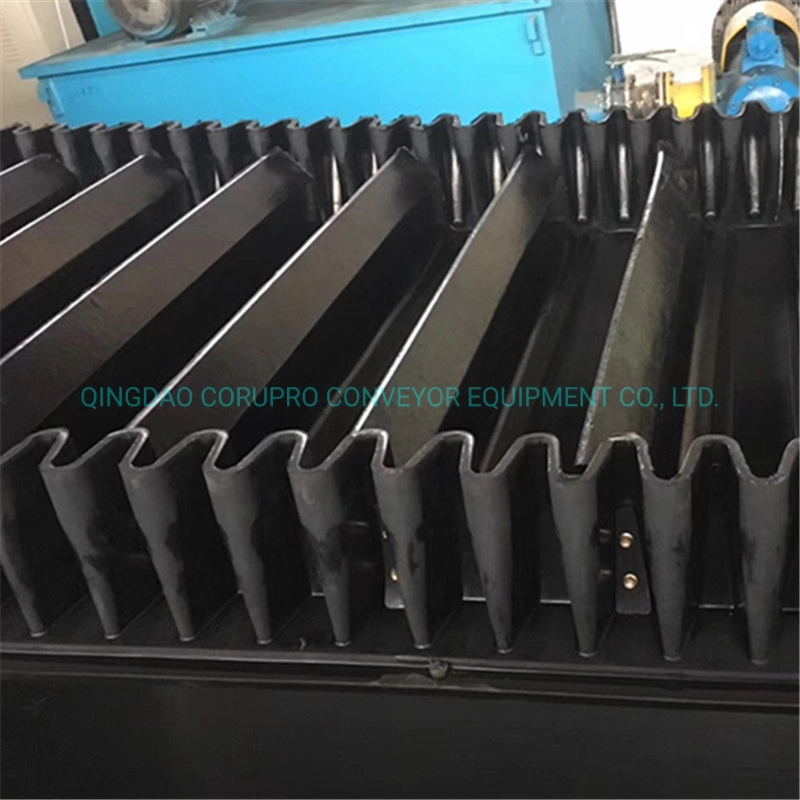

Ep Rubber Corrugated Sidewall Conveyor Belt
Sidewall belts are suitable for transporting (up to 90°) bulk material horizontally to vertically . It can reduce the number of transfer points during operation, and has a positive outcome in terms of saving energy and capital mode of operation. we offers this belts to customers with possible combinations of cleats and sidewalls in different height up to 500 mm.

Overview
hot vulcanisation of cleats and sidewalls on the base belt
maximum cleat and sidewall height 500 mm
maximum width of belt 4500 mm
delivered as endless belt or open length

Sidewalls and cleats may be manufactured with re-inforced textile layers and connected with screws if required. Furthermore, we offers sidewall conveyor belts in cross rigid XE design as well as with steel breaker.

Cleat Type: T, TC, TS, TCS, C
TS and TCS cleats are normally used for abrasion condition.
T and TS cleats are normally used up to 40°.
TC and TCS cleats are normally used from 40°to 90°.


DESIGN

It is based in the following main components:
(1) Cross-stabilised Base Belts
(2) Sidewalls
(3) Cleats
Sidewall Conveyor belt has been designed with two corrugated sidewalls and cleats molded to cross-rigid base belt can carry heavy product loads up to the inclined angle of 75° This belt is popular to be used where space where space is at a premium and steep incline angles are desired.
The Base Belt :
The base belt is designed to bend efficiently in a longitudinal direction and has greater rigidity in a transverse direction by utilizing reinforced fabrics with monofilament the creates a fabric carcass of high tension.
Features:
It can be deflected from the horizontal to an incline or vertical and back again without bowing or sagging. These deflection points as well as the belt returning on free lateral space by snub idlers definitely require the corss-rigidity of the base belt. The designed mno-filament fabrics provide better returnside support, no wear and tear of cleat and cover rubber is available with various compounds like abrasion resistance oil, heat, flame resistance.

Sidewall belts are mainly used in the following application areas:Automotive
Mining
Foundries
Power plants
Recycling industry
Sand and gravel industry
Stone quarries

Sidewall Conveyor Belt
SidewallHeight    mmBase width(SW)     mmCrest Height (TW) mmPitch of waves(P) mmCleat TypeCleat Height   mmBase width     mm
S40504040TC3655
S60504240C5565
 TC5565
S80504440C7590
 TC7590
S100504042TC90100
MS120504444T110110
TC110100
MS160756563.5T140110
TC140110
TCS140100
MS200756563.5TC180110
TCS180100
MS220756563.5TCS200100
HS240 75 65 64 TCS220100
TCS230
HS3001056589TCS280180
360105  TCS320
HS4001059589TCS360180
500   TCS500
