Shandong Shengrun Rubber Co.Ltd ( SR Belting ) is a manufacturer which has specialized in producing conveyor belt for more than 20 years. Products are used in mining, coal ,port, metallurgy, cement, transportation and hoisting of materials.
SR Belting always strives to assure the safety of conveyor belt to meet and exceed beyond the national standards and customers satisfactions with its products. SR Belting has obtained ISO9001,ISO24001 and ISO28001 certifications.
SR Belting manufactures conveyor belts based on customers' requirements as Global ISO, German DIN, SANS and RMA etc.
We have a independent design, research and development capabilities and can be customized to customer requirement.
Our company possesses a complete set of detection equipment, the independent chemical analysis and physical labs, ensuring all the raw materials to provide excellent quality products.
We sincerely welcome friends at home and abroad to visit our factory to discuss cooperation and agency business.
Our partners: CHINA SHENHUA, CNBM, SINOMA, LAFARGE, SHOUGANG GROUP, CHINA HUANENG

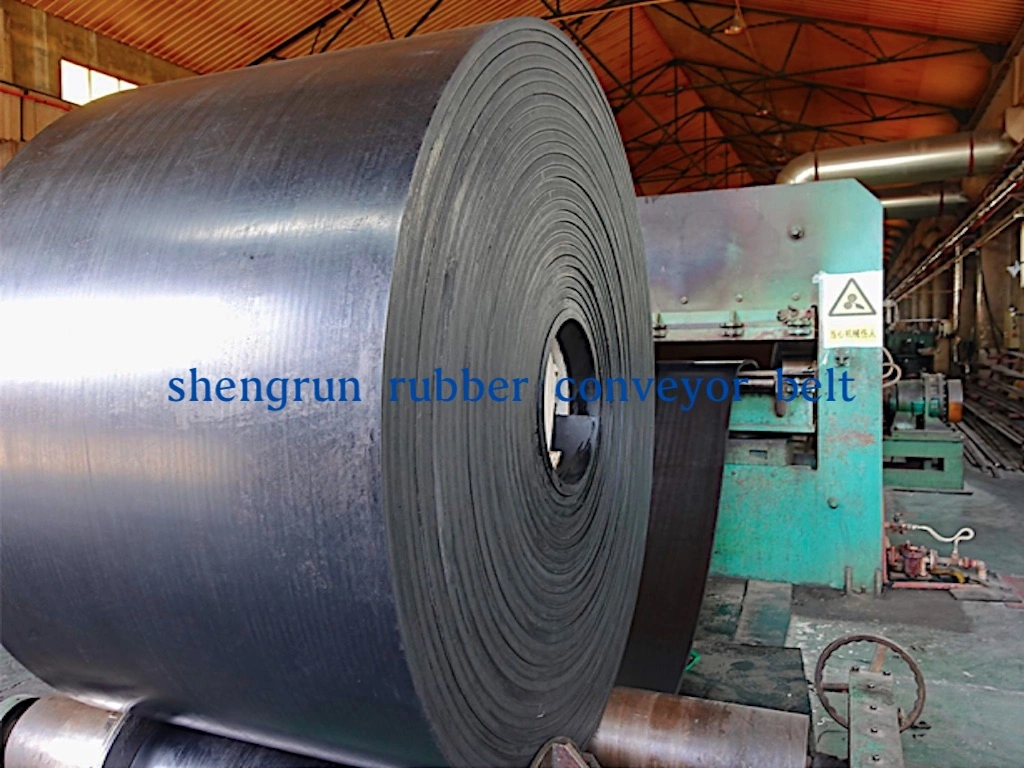

Conveyor Belting Rubber Abrasion Resistant Conveyor Belt
e.g.Production Specification:
EP150*3Ply, BW800×(3+1.5) 15Mpa
Production description:
Conveyor belt is customized for handling of cement mill by Indonesia client, width is 800mm, the quantity of canvas is 3ply, with the wrap(length of the case) made of polyester(E) and the weave (transversal case fabric) made of nylon(P), impact and cutting strength > 50N/mm, tensile strength ≥15N/mm2, minimum break elongation is ≥ 350%, and the hardness is 60+/-5 shore a, top cover thickness is 5mm, the bottom cover thickness is 2mm, excellent abrasion resistance (loss from abrasion 90mm3 or less), with molded edges, adhension between fabric and fabric ≥ 5N/mm, adhension between fabric and rubber ≥ 4.5N/mm, continuous running temperature is up to 40ºC-80ºC.
Cover Grade:
•General Light Duty Service
Common References: DIN-Z is very economical for moderately abrasive to conveyor small size materials.
•Medium Abrasion Resistance
Common Reference: DIN-Y, DIN-N, RMA 2, AS-N are for moderate abrasion resistance applications, mostly
above ground. Regularly used for transportation of Coal, crushed ores, limestone, sand, cements etc.
•High Abrasion Resistance
Common Reference: DIN-X, DIN-M, RMA1, AS-M are excellent abrasion resistance against cutting, impact,
heavy rocks, sharp stones.
•Super Abrasion Resistance
Common Reference: DIN-W is used in extremely abrasive applications such as Copper & ore, sinter, coke. It
provides high resistance without increasing cover thickness and weight of the belt.
Application:
•NN belt is the combination of Nylon in warp and weft and it is widely used in multi-ply conveyor belts for transporting bulk or lumpy materials.
•EP belt is the combination of Polyester in warp and Nylon in weft. EP belt provides far much lower elongation than NN belt and it can also be used for special purposes.
Feature:
•High tensile strength
•Excellent troughability
•High resistance against impact
•Strong adhesion and less ply separation
•Good accommodation to carrier roller and being well kept straight on
•Superior abrasion of 50mm3 is less than DIN-W
•High Modulus
•Suitable for long lines
Specification:
Can be customerized accroding customers' requirement
Our Packing:
There is a variety of packing solutions we can offer, and also be customized according to your requirements.
SR Belting Business FAQ
Q:What is your production capacity?
A:SR Belting has 11 production lines and its capacity is 5000meters per day.
Q:How about your lead time?
A: It is 20 ~ 25days for regular belts.
Q: What is your M.O.Q ?
A: M.O.Q is 1*20GP. The less quantity is ok but its cost will be higher.
Q: Do you have belt warranty?
A: At least 12months service life for regular belt. HR T4+ belt 3~6month.
Q: What certificates do you have ?
A: SR Belting has obtained ISO9001,ISO24001 and ISO28001 certifications.
