Introduction

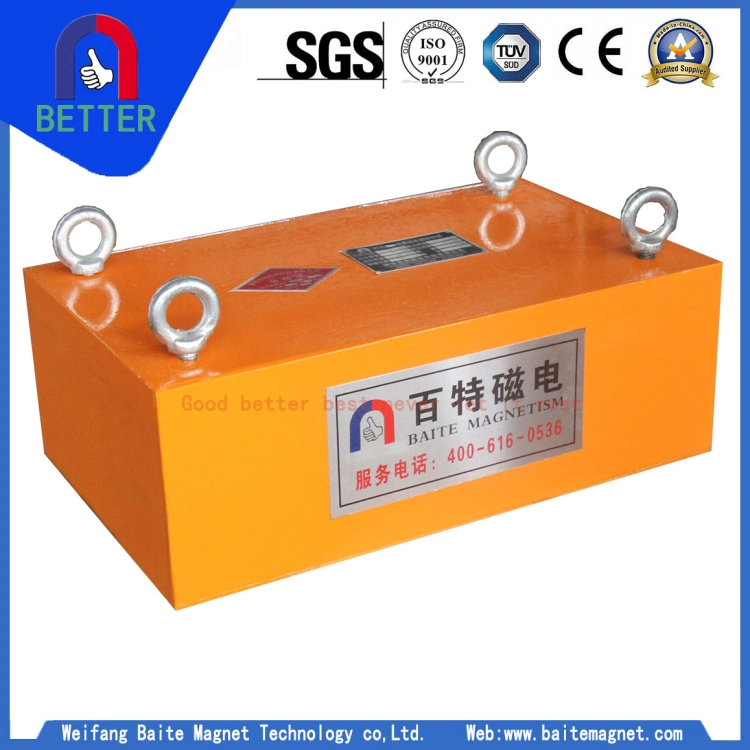

RCYB Series Suspension magnetic separator has strong magnetic field intensity.It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.ensure the magnetism can not be affected by environmental temperature and mechanical vibration. High intensity magnetic ensured that the magnetism can not be affected by environmental temperature and mechanical vibration.The surface of magnetic materials is electroplated and treated with strict anti-corrosion during assembly.The unique magnetic circuit was designed by advanced computer simulation means and patented technology.the equipment has good advantages of high magnetic field intensity,no energy consumption and a long service life. It is easy to install and use without maintenance.
Technical Feature
1.It was designed by our company ,strong magnetic field intensity.
2.Simple installation,convenient to operate ,high efficiency and stable performance ,free maintenance.
3.It is used to remove 0.1-30kg of ferromagnetic material which mixed in the raw material as it passes through the powerful magnetic field.
4.the permanent magnetic field usage is more than 10 years.
5.The technical specifications of the product accord with standard of JB/T8711-1998 .
Application
It has three model,such as light type,high intensity type,standard type.you can choose the product according your own needs.It is widely used in mining, coal/power generation plant and also in chemical/ food/plastic/ ceramics industries.In addation,for belt conveyor,vibrating conveyor and feeding chute to eliminate the waste iron .
Technical Data
| NO. | Model | Model | Adaptive belt width (mm) | Suspension height (h=mm) | Material depth (≤mm) | Belt speed (m/s) | Weight (kg) | Appearance size(mm) | Magnetic core type | ||
| L | D | H | |||||||||
| 1 | High intensity type | RCYB-4A | 400 | 120 | 80 | 4.5 | 45 | 400 | 250 | 120 | Ferrite |
| 2 | RCYB-5A | 500 | 130 | 100 | 66 | 500 | 300 | 130 | |||
| 3 | RCYB-6A | 600 | 150 | 130 | 97 | 600 | 350 | 150 | |||
| 4 | RCYB-8A | 800 | 200 | 150 | 248 | 800 | 500 | 170 | |||
| 5 | RCYB-10A | 1000 | 230 | 200 | 390 | 1000 | 600 | 190 | |||
| 6 | Light type | RCYB-4-1 | 400 | 100 | 60 | 75 | 400 | 250 | 140 | Rare-earth magnet | |
| 7 | RCYB-5-1 | 500 | 120 | 80 | 95 | 500 | 270 | 160 | |||
| 8 | RCYB-6-1 | 600 | 140 | 100 | 158 | 600 | 350 | 180 | |||
| 9 | RCYB-8-1 | 800 | 180 | 140 | 480 | 800 | 600 | 260 | |||
| 10 | Standard | RCYB-4 | 400 | 150 | 100 | 115 | 400 | 300 | 230 | Built-up magnet | |
| 11 | RCYB-5 | 500 | 175 | 120 | 206 | 500 | 300 | 260 | |||
| 12 | RCYB-6 | 600 | 180 | 140 | 295 | 600 | 400 | 280 | |||
| 13 | RCYB-6.5 | 650 | 200 | 160 | 450 | 650 | 400 | 300 | |||
| 14 | RCYB-8 | 800 | 250 | 200 | 680 | 800 | 600 | 320 | |||
| 15 | RCYB-10 | 1000 | 300 | 250 | 770 | 1000 | 800 | 320 | |||
| 16 | RCYB-12 | 1200 | 320 | 260 | 850 | 1200 | 800 | 350 | |||
| 17 | RCYB-14 | 1400 | 320 | 280 | 1080 | 1400 | 1000 | 350 | |||
| Note:All themodels have T1,T2,T3design whose magnetic intensity is higher than standard. The magnetic 90mt,120mt and 150mt separately,Discard iron belt can be equipped with armor. | |||||||||||
Shipped in 30 days after payment
Company & Customer Visiting
There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001:2000 international quality magnagement system standard and IS010012 international quality inspection system standard.
Factory Advantages & Service

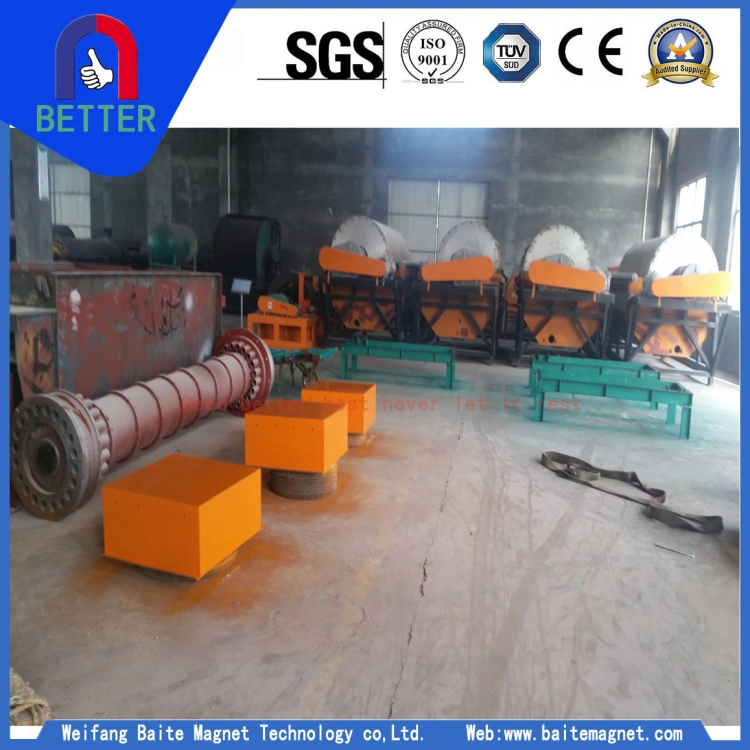

Baitemagnet factory for general users and special users design and production of various types of customized products.The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.Most of our products are self-developed products, combining with advanced technology at home and abroad to ensure that the industry is competitive and fully meets the technical requirements of customers.Our production capacity is strong, and we have a special production line for customers who are in urgent need of the goods.
We are full of enthusiasm, high quality service, think the customer value is the principle. Provide the spare parts and vulnerable parts of the products at the factory price.
Once the equipment failure in the process of production, the company within 24 hours to the customer's phone must come up with a clear solution, and to resume production first and then the responsibility attitude quickly solve the problem
FAQ
1.Q: Can you provide samples?
A: Yes. We can make customized samples to you for quality checking and design confirmation.
2.Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
3. How to make the payment?
we accept the payment by T/T or Western Union or Cash, L/C .For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment.
4.Q: What is the shipping port?
A: Usually we ship from Qingdao port. If you want to ship from another port we can coordinate with you.
5.Q: What is the lead time?
A: 30-45 days after payment and production drawing confirmation.
6.Q: What is your MOQ?
A: Normally 1 piece is acceptable. Please consult with our sales for details.
