The main Feature of SWMH250K Material Handlers
1-Dual engine ( Electric motor + Diesel engine) more environmental protection;
2-Electric operation has over-current and heat leakage protection device;
3-Utomatic identification of phase sequence to prevent reverse rotation of oil pump;
4-Hydraulic system power-off, oil self-locking protection device;
5-Multiple compound movements during operation to improve efficiency;
6-The hydraulic system is equipped with air-cooled radiator;
7-The gripper can rotate and change direction automatically 360 degrees;
8-When electric operation is carried out in the upper control room, there is a dual-purpose air conditioner for heating and cooling;
9- Hydraulic Cabin elevatied.

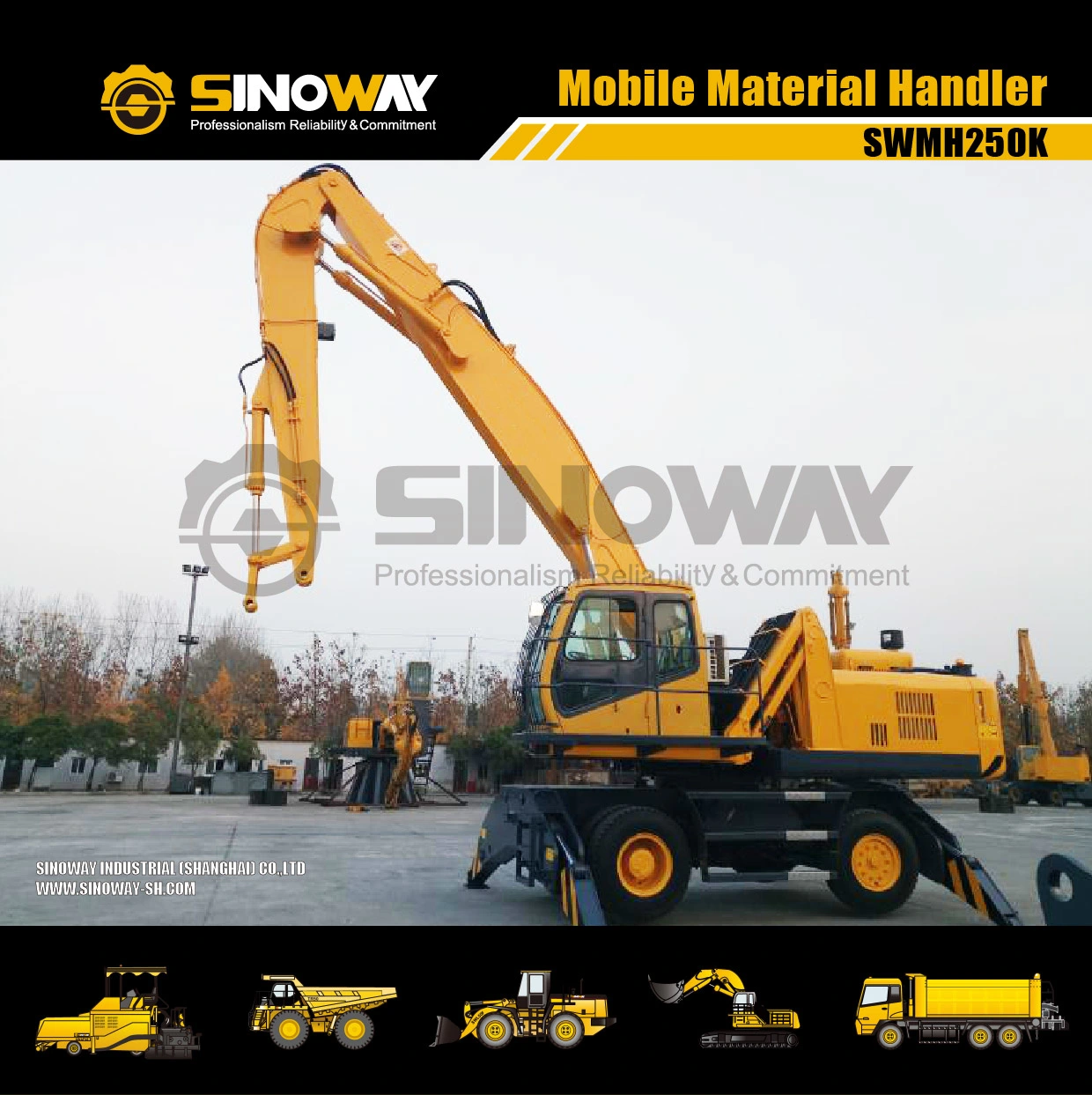

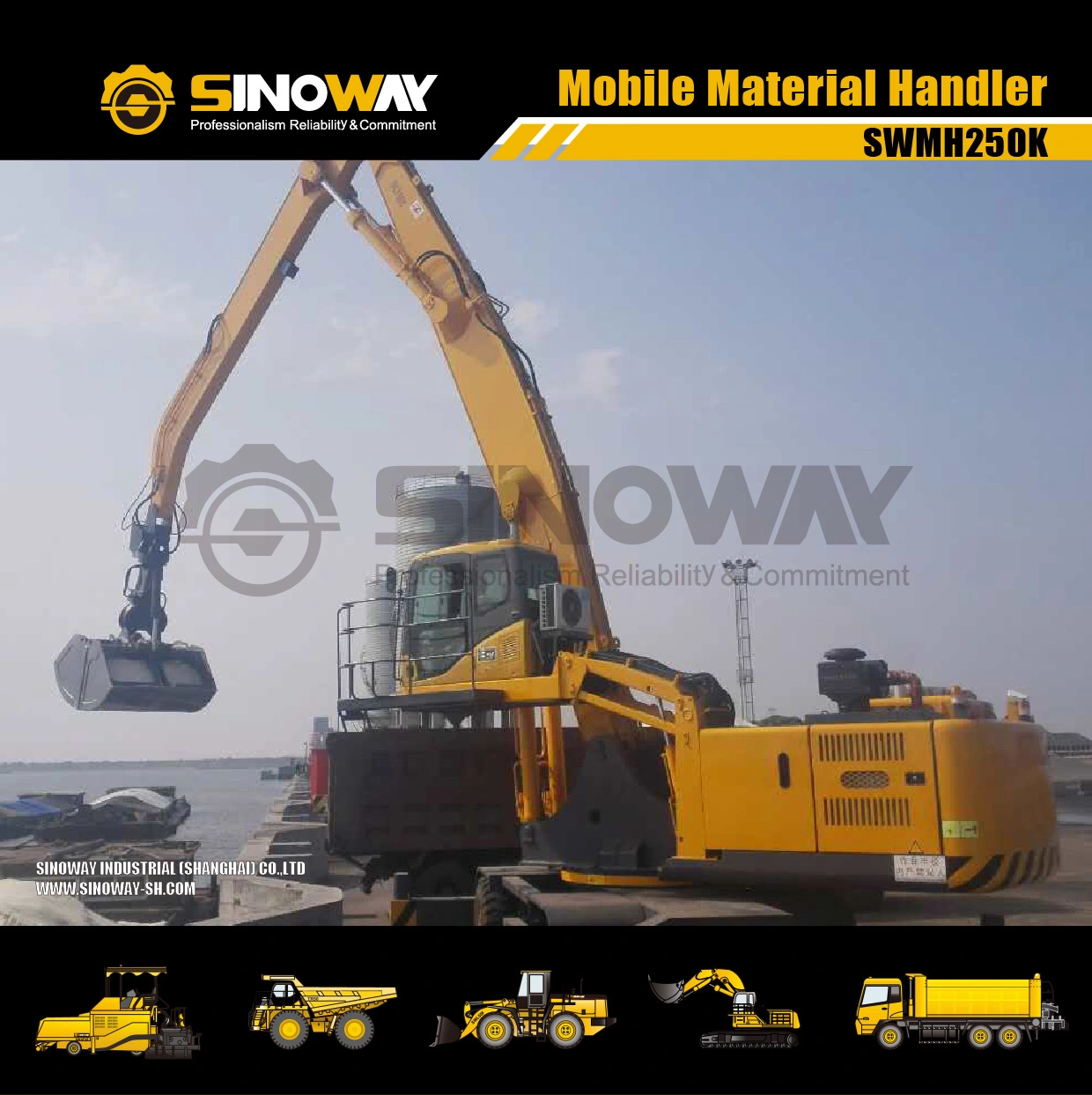

Product Show
Specifications
Why Choose Us
1-Dual engine ( Electric motor + Diesel engine) more environmental protection;
2-Electric operation has over-current and heat leakage protection device;
3-Utomatic identification of phase sequence to prevent reverse rotation of oil pump;
4-Hydraulic system power-off, oil self-locking protection device;
5-Multiple compound movements during operation to improve efficiency;
6-The hydraulic system is equipped with air-cooled radiator;
7-The gripper can rotate and change direction automatically 360 degrees;
8-When electric operation is carried out in the upper control room, there is a dual-purpose air conditioner for heating and cooling;
9- Hydraulic Cabin elevatied.
Product Show
Specifications
| Mobile Material Handler SWMH250K | |
| Power | |
| Electrical motor | 75KW |
| Rated speed | 1200rpm |
| Max. swing speed(Electrical motor) | 5r/min |
| Diesel engine | 118KW |
| Rated speed | 2200rpm |
| Max. swing speed(Diesel engine) | 8r/min |
| Fuel tank capacity | 320L |
| Main Technical Specification | |
| Max. lifting capacity@Min. working radius | 8500kg |
| Max. lifting capacity@Max. working radius | 1000kg |
| Min. working radius | 3000mm |
| Max. working radius | 10200mm |
| Max. lifting moment | 30.0t.m |
| Max. swing torque | 75kN.m |
| Boom length | 6200mm |
| Arm length | 4000mm |
| Main luffing time(Max. speed) | |
| -Fall boom(Electrical/Diesel) | ≤17s/≤11s |
| -Rise boom(Electrical/Diesel) | ≤21s/≤11s |
| Auxiliary luffing time(Max. speed) | |
| -Fall boom(Electrical/Diesel) | ≤20s/≤11s |
| -Rise boom(Electrical/Diesel) | ≤9s/≤6s |
| Outrigger | |
| -Full stretching(Electrical/Diesel) | ≤16s/≤11s |
| -Full retracting(Electrical/Diesel) | ≤12s/≤10s |
| Outrigger distance | |
| -Lengthways | 4500mm |
| -Transversal | 4200mm |
| Travelling System | |
| Max. travelling speed | 15km/h |
| Min. turning radius | 7.6m |
| Max. gradeability | 10% |
| Min. ground clearance | 250mm |
| Max. traction force | 100kN |
| Approach angle | 15.0° |
| Departure angle | 15.0° |
| Braking distance(Speed:15km/h) | ≤6.5m |
| Operating weight | 25000kg(Including clam shell) |
| Dimension | |
| Overall length | 10800mm |
| Overall width | 3000mm |
| Overall height | 3430mm |
| Wheelbase | 2800mm |
| Max.lifting height of cab | 5840mm |
| Rear-end length/Slewing radius | 3600mm |
| Counterweight clearance | 1372mm |
| Upperstructure width | 2700mm |
